5Series Aluminium Alloy Extrusion

    Model Number: 5052、5083、5A02、5A03、5A05、5A06
  • Place of Origin: Guangxi, China
  • Brand Name: Gold Apple
  • Certification: ISO9001, ISO14000, ISO10012
  • Temper: H112、 O
  • Grade: 5000 Series
  • Alloy Or Not: Is Alloy
  • Minimum Order Quantity: 10 tons after confirmed the samples
  • Used: For window & door
  • Thickness: >1.0mm

Product Details


Product description:


5 series aluminum alloy is mainly magnesium. Good corrosion resistance, good welding performance, good fatigue strength, can not be strengthened by heat treatment, only cold processing can be used to increase strength.

The main features are low density, high tensile strength and high elongation. The weight of aluminum-magnesium alloy is lower than other series under the same area.



handle of lawn mower, body armor. In aviation, such as aircraft fuel tanks. It is also widely used in conventional industries. The processing technology is continuous casting and rolling, which belongs to the hot-rolled aluminum alloy series, so it can be oxidized deep processing.

Alloy:5052、5083、5A02、5A03、5A05、5A06       Temper: H112、 O              Package: Bare package          Length:7m-14m            Product diameter:100mm-600mm

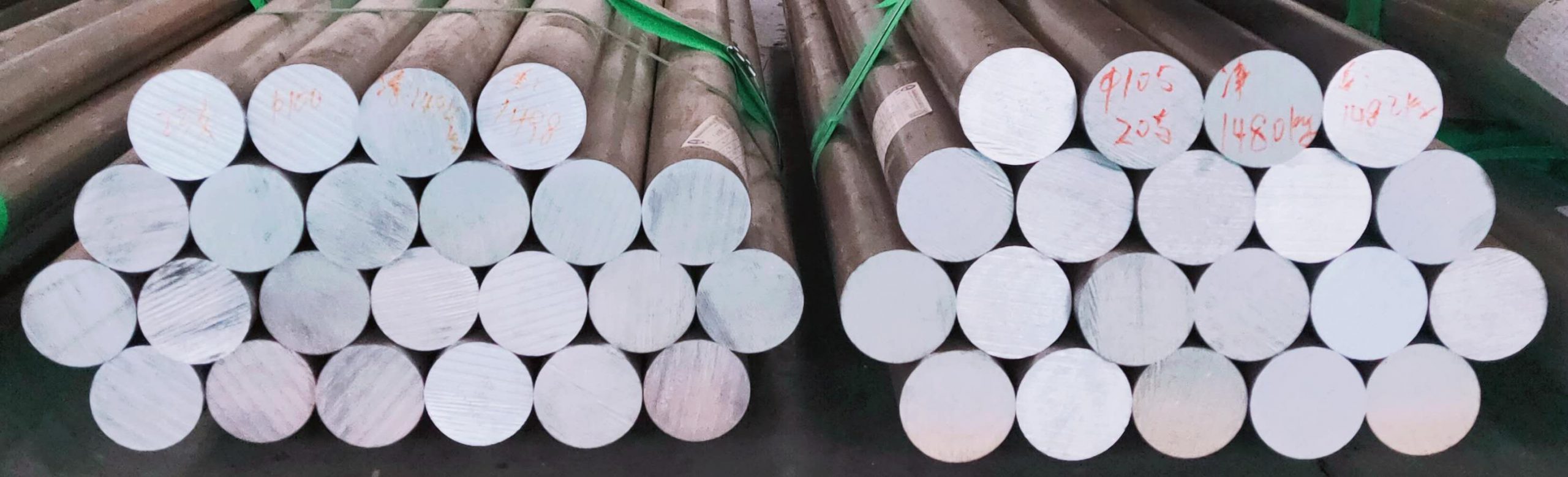

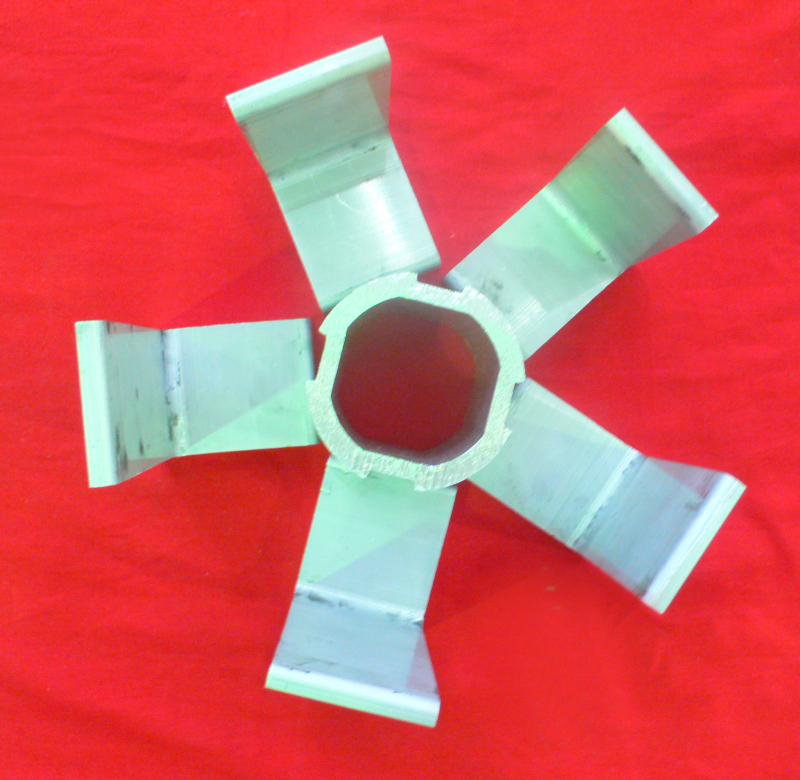

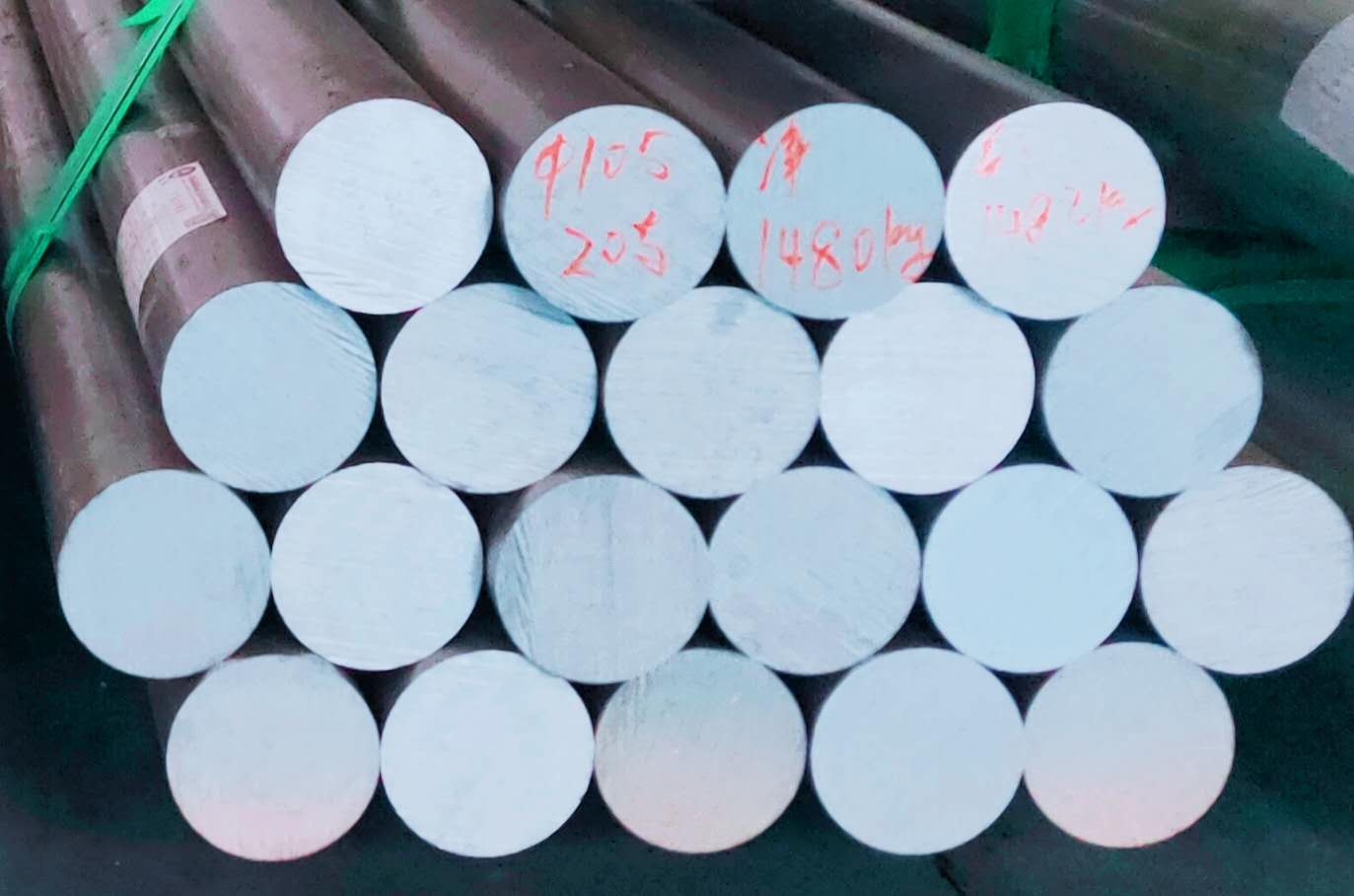

(1)Aluminium alloy tube,aluminium alloy bar, aluminium alloy extrusion profile

(2)waterproof cloth / plastic film wrapping, steel band bundling, wooden pallet bottom;

(3)cube packaging, wooden pallet bottom, steel band bundling


Product advantages:

(1)Sophisticated production technology, advanced equipment. The main production equipment and testing equipment are imported from abroad

(2)High precision, high strength, corrosion resistance and wear resistance

(3)The technical center (central laboratory) has been assessed as the Qinghai Engineering Technology Center. It is not only capable of analyzing the chemical composition of the aluminum alloy tube and rod production, metallurgical structure inspection, and mechanical property testing, but also can meet the needs of new product and new process development.

(4)Certificates to prove quality:

01 Weaponry equipment research and production license

02 National Industrial Production License

03 Quality management system certification

04 Environmental management system certification

05 Occupational health and safety management system certification



Standard loading quantity:

1*20GP:Max .length:5.85 meters   Loaded quantity: 10 to 12 tons

1*40HQ:Max. length:12 meters     Loaded quantity: 22-26 tons


Standard export port:

Huangpu/ Foshan or Shenzhen


Type of shipping:

Shipment by sea; by road; by train; multi-transportation.
